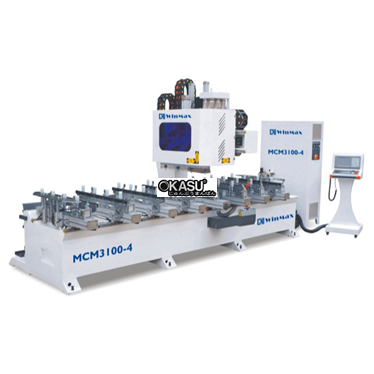

MODEL: MCM3100-4 / MCM3100-4 PLUS
| MCM3100-4 | MCM3100-4 PLUS | |
| Max. X stroke | 3200 mm | 3100 mm |
| Max. Y stroke | 260 mm | 260 mm |
| Max. Z stroke | 300 mm | 300 mm |
| Max. workpiece width | 170 mm | 170 mm |
| X axis power X | 2.0KW (SERVO) | 2.0KW (SERVO) |
| Y axis power Y | 1.0KW (SERVO) | 1.0KW (SERVO) |
| Z axis power Z | 1.5KW (SERVO) | 1.5KW (SERVO) |
| Spindle speed | 18000 RPM | 18000 RPM |
| Spindle power | 3.7KW x 4pcs | 3.7KW x 4pcs + 2.2KW x 4pcs |
| Spindle distance | 250 mm | 250 mm |
| Machine speed | 40 m/min | 40 m/min |
| Working pressure | 0.6-0.8 MPA | 0.6-0.8 MPA |
| Total power | 19.5 KW | 28.3 KW |
| Dimensions | 4700 x 2100 x 2200 mm | 4700 x 2100 x 2200 mm |
| Weight | 2300 Kg | 2500 Kg |
