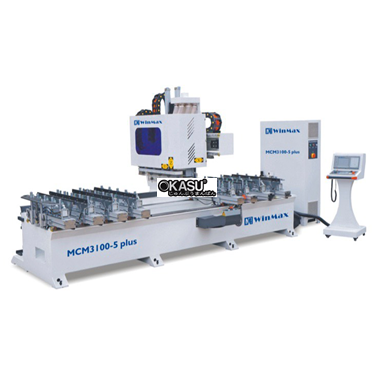

MODEL: MCM3100-5 / MCM3100-5 PLUS
| MCM3100-5 | MCM3100-5 PLUS | |
| Max. X stroke | 3100 mm | 3100 mm |
| Max. Y stroke | 260 mm | 260 mm |
| Max. Z stroke | 300 mm | 300 mm |
| Max workpiece width | 130 mm | 130 mm |
| X axis power X | 2.0 KW (SERVO) | 2.0 KW (SERVO) |
| Y axis power Y | 1.0 KW (SERVO) | 1.0 KW (SERVO) |
| Z axis power Z | 1.5 KW (SERVO) | 1.5 KW (SERVO) |
| Spindle speed | 18000 RPM | 18000 RPM |
| Spindle power | 3.7 KW x 5 pcs | 3.7 KW x 5pcs + 2.2KW x 5pcs |
| Spindle distance | 200 mm | 200 mm |
| Machine speed | 40 m/min | 40 m/min |
| Working pressure | 0.6-0.8 MPA | 0.6-0.8 MPA |
| Total power | 23.2 KW | 34.2 KW |
| Dimensions | 2700 x 2100 x 2200 mm | 4700 x 2100 x 2200 mm |
| Weight | 2400 Kg | 2600 Kg |
