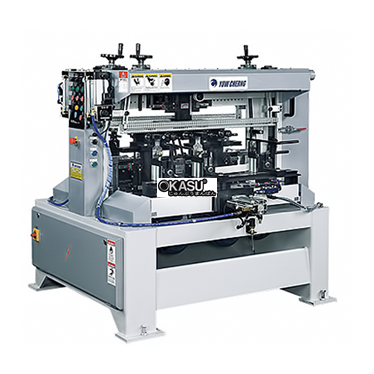

| Model | YOM-3-3L |
|---|---|
| Numbers of carriage | 3 sets |
| Numbers of spindle | 5 spindle |
| Max. mortise width | 100 mm |
| Max. mortise depth | 50 mm |
| Cutter diameter | Ø6~Ø25 mm |
| Cutter shank diameter | Ø16 mm |
| Distance between spindles | 45~760 mm |
| Oscillation speed (2 speeds) | 190 strokes |
| Spindle speeds | 4500~9000 R.P.M. |
| Tilted mortise angle | 10°x1 / 20°x2 |
| Spindle motor | 3 HP |
| Oscillation drive motor | 1.5 HP |
| Total horsepower | 5.6 kw (7.5 HP) |
| Working air pressure | 6 BAR |
| Dust hood outlet diameter | Ø2-1/2″x2 / Ø4″x1 |
| Net weight | 1000 kgs |
| Gross weight | 1200 kgs |
| Machine dimensions | 1450x1650x1400 mm |
| Packing dimensions | 1610x1630x 700 mm |
