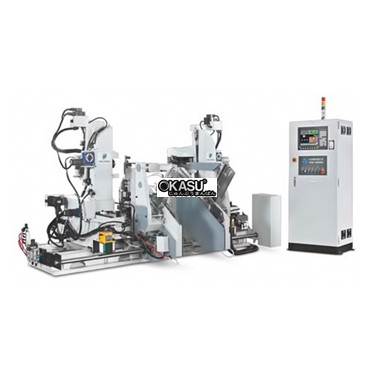

| Model | CNC-D200A |
|---|---|
| Length of cut | 185~2000 mm |
| Spindle speed | 12,000 R.P.M. |
| Maximum tenon width | 130mm |
| Maximum tenon depth | 40 mm |
| Minimum tenon depth | 10 mm |
| Maximum tenon thickness | 30 mm |
| Cutter head tilting angle | -10˚~45˚ |
| Cutter head swiveling angle | 0˚~45˚ |
| Spindle motor | 6KWx2 |
| Dust hood outlet diameter | ø4″ x 2 |
| Working air pressure | 6 kg/cm² |
| Total horsepower | 16.3 kw (21.8 HP) |
| Machine dimensions | 3740x3000x1970 mm |
| Packing dimensions | 4000x2180x2300 mm |
| Net weight / Gross weight | 3300 kg / 3500 kg |
