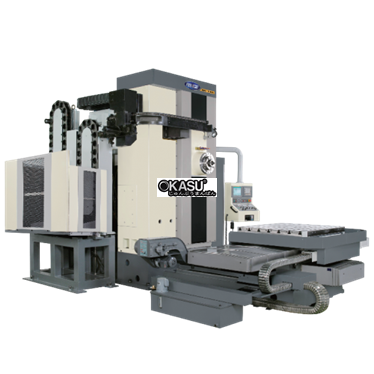

BMC-110R1/R2/R3
BMC-110T2/T3/T4
● Meehanite castings for all major parts.
● 4+1 (X,Y,Z,W+B) axis and 4 simultaneous machining.
● Linear scales on X, Y, Z axes.
● Powerful hydraulic system clamps rotary table securely.
● Program indexed rotary table positions at every 90º for various machining requirements. (standard)
● Optional universal CNC indexing table.
● Fanuc 0i-MF CNC controller.
● Spindle extension sleeve (optional) allows for deep hole machining.
● Simultaneous 4 axes control when equipped with universal CNC indexing table.(Optional)
● Column-moving design, work table installs on the base of x axis, higher rigidity and larger work table loading capacity.
● With linear scale on X,Y,Z axis, forming a closed feedback system.
● 4+1 axes (X,Y,Z,W+B) control and simultaneous 4 axes control.
● Universal CNC indexing table (B axis function).
● X / Y / Z axis Traverse：2000/2050/1500 mm.
● Work table Size：1440 x 1600 mm.
● Max. work table load：8000 kg
● T2/T3/T4 spindle can be extended to 500mm long
