SPECIFICATION
|
ITEM |

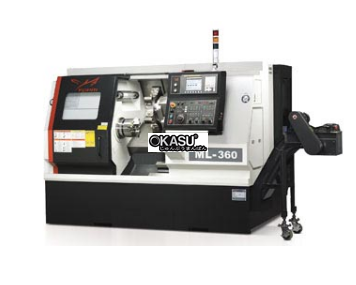

ML-360 |
||
|
Standard |
C axis |
||
|
Swing over bed |
Ø600 mm |
||
|
Swing over saddle |
Ø400 mm |
||
|
Distance between center |
STD 640 mm(A2-6) OPT 595 mm (A2-8) |
||
|
Max machining dia |
Ø360 mm |
Ø300 mm |
|
|
Max machining length |
STD 470 mm(A2-6) OPT 455 mm (A2-8) |
||
|
Sland angle of bed |
300 |
||
| TRAVEL | |||
| X axis |
215(180+35) mm |
225(150+75) mm |
|
| Y axis |
--- |
||
| Z axis |
8” 500 mm 10” 500 mm |
||
| C axis |
3600(0.0010) |
||
| SPINDLE | |||
| Spindle speed |
STD 50-4900 rpm (A2-6) OPT 50-3500 rpm (A2-8) |
||
| Spindle nose |
A2-6 OPT A2-8 |
||
| Spindle bore diameter |
Ø62 A2-6 OPT Ø86 A2-8 |
||
| Draw bar |
Ø52 A2-6 OPT Ø75 A2-8 |
||
| Chuck diameter |
Ø8” OPT Ø10” |
||
| TURRET | |||
| Turret type |
Hydraulic OPT Servo VDI |
Live tooling |
|
|
Stations |
STD 12 , OPT 10 |
12 OPT 8 |
|
|
Square tool shank |
25x25 mm |
||
|
Boring bar shank dia |
Ø40 mm |
Ø40 mm |
|
|
Indexing time (0-180) |
2.1/0.87 s |
1.5 s |
|
|
LIVE TOOLING |
|||
|
Spindle speed |
--- |
50-4000 rpm |
|
|
FEED RATE |
|||
|
Rapid traverse |
X36 Z36 m/min |
||
|
TAILSTOCK |
|||
|
Quil dia |
Ø85 mm |
||
|
Quill bore taper |
MT4 |
||
|
Quill travel |
80 mm |
||
|
MOTORS |
|||
|
Main spindle |
11/15KW OPT15/18.5Kw |
||
|
Live tool |
--- |
3.7 /5.5 Kw |
|
|
X/Z axis servo motor |
X: 3Kw Z 3Kw |
||
|
Hydraulic oil pump |
1.5 Kw |
||
|
Chip conveyor |
0.2 Kw |
||
|
Coolant pump |
0.8 Kw |
||
|
ACCURACY |
|||
|
Positioning |
±0.004 mm |
||
|
Repeatability |
±0.003 mm |
||
|
Packing dimension |
3700x2270x2140 mm |
||
|
Net Weight |
4870 kg |
||
