SPECIFICATION
|
ITEM |

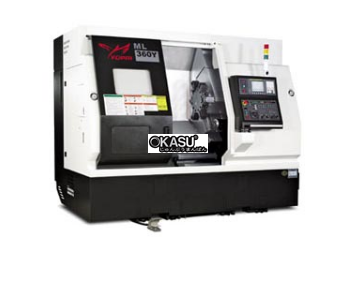

ML-360Y |
|
Swing over bed |
Ø600 mm |
|
Swing over saddle |
Ø400 mm |
|
Distance between center |
660 mm |
|
Max machining dia |
Ø130 mm |
|
Max machining length |
STD 389 mm(A2-6) OPT 375 mm (A2-8) |
|
Sland angle of bed |
600 |
| TRAVEL | |
| X axis |
125(60+65) mm |
| Y axis |
80(±40) |
| Z axis |
500 mm |
| C axis |
3600(0.0010) |
| SPINDLE | |
| Spindle speed |
4900 rpm (A2-6) |
| Spindle nose |
A2-6 |
| Spindle bore diameter |
Ø62 |
| Draw bar |
Ø52 |
| Chuck diameter |
Ø8” |
| TURRET | |
| Turret type |
Live tooling |
|
Stations |
STD 12 |
|
Square tool shank |
25x25 mm |
|
Boring bar shank dia |
Ø40 mm |
|
Indexing time (0-180) |
0.1s |
|
LIVE TOOLING |
|
|
Spindle speed |
50-4000 rpm |
|
FEED RATE |
|
|
Rapid traverse |
X36 Z36 C200 m/min |
|
TAILSTOCK |
|
|
Quil dia |
Ø85 mm |
|
Quill bore taper |
MT4 |
|
Quill travel |
80 mm |
|
MOTORS |
|
|
Main spindle |
11/15KW |
|
Live tool |
3.7 /5.5 Kw |
|
X/Z axis servo motor |
X: 3Kw Z 3Kw |
|
Hydraulic oil pump |
1.5 Kw |
|
Chip conveyor |
0.2 Kw |
|
Coolant pump |
0.8 Kw |
|
ACCURACY |
|
|
Packing dimension |
2650x2070x2040 mm |
|
Net Weight |
6300 kg |
