ITEM |

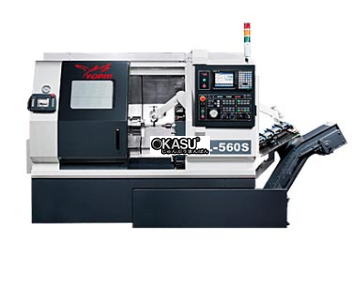

ML-560S |
|
Swing over bed |
Ø560 mm |
|
Swing over saddle |
Ø420 mm |
|
Distance between center |
500 mm |
|
Max machining dia |
Ø320 mm |
|
Max machining length |
320 mm |
|
Sland angle of bed |
300 |
| TRAVEL | |
| X axis |
190(160+30) mm |
| Y axis |
--- |
| Z axis |
360 mm |
| C axis |
--- |
| SPINDLE | |
| Spindle speed |
Std 600 rpm OPT4900rpm |
| Spindle nose |
A2-5 OPT A2-6 |
| Spindle bore diameter |
Ø62 |
| Draw bar |
Std Ø45 OPT Ø52 |
| Chuck diameter |
Std Ø6” OPTØ8” |
| TURRET | |
| Turret type |
LS160A |
|
Stations |
STD 8 OPT :10 |
|
Square tool shank |
20x20 mm OPT 25x25 mm |
|
Boring bar shank dia |
Ø40 mm |
|
Indexing time (0-180) |
0.5s |
|
LIVE TOOLING |
|
|
Spindle speed |
--- |
|
FEED RATE |
|
|
Rapid traverse |
X30 Z30 m/min |
|
TAILSTOCK |
|
|
Quil dia |
Ø65 mm |
|
Quill bore taper |
MT4 |
|
Quill travel |
50 mm |
|
Tailstock travel |
290 mm |
|
MOTORS |
|
|
Main spindle |
7.5/11KW |
|
Live tool |
--- |
|
X/Z axis servo motor |
X: 1.2 Kw Z 1.2Kw |
|
Hydraulic oil pump |
--- |
|
Chip conveyor |
--- |
|
Coolant pump |
0.96 Kw |
|
ACCURACY |
|
|
Packing dimension |
3000x1700x1600 mm |
|
Net Weight |
3380 kg |
