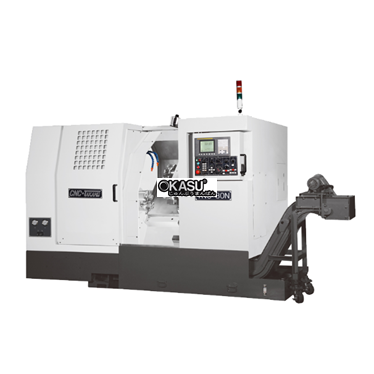

| Model | Mô tả | TNC40N x 1650 / 2150 / 2650 |
| Capacity | Swing over bed | Ø 600 mm (23. 6”) |
| Swing over saddle | Ø 430 mm (16. 9”) | |
| Distance between center | 1715 / 2215 / 2715 mm (67. 5” / 87. 2” / 106. 9”) |
|
| Cutting diameter | Ø 480 mm (18. 9”) Direct / Ø 440 mm (17. 3”) VDI | |
| Hydraulic chuck | Ø 304 mm (12”) / OPT Ø 380 mm (15”) | |
| Bar diameter | Ø 90 mm (3. 5”) | |
| Bed width | 480 mm (18. 9”) | |
| Bed slant angle | 45 degree | |
| Spindle | Spindle nose | A2-8 |
| Spindle hole | Ø 102 mm (4”) | |
| Spindle taper | 1 / 20 | |
| Spindle speed | 10 ~ 2500 R. P. M | |
| Spindle motor | FANUC αil 18 (18. 5 / 22 kw) + 2 steps gear box (1:4) |
|
| Spindle dia. (OD) | Ø 160 mm (6. 3”) | |
| Turret | Turret type | Hydraulic turret / Servo turret (OPT) |
| Tool station & size (OD) | 10 / 12 (OPT), 25 x 25 mm (1” x 1”) | |
| X travel | 255 mm (10”) | |
| Z travel | 1650 / 2150 / 2650 mm (65” / 84. 6” / 104. 3) |
|
| Y travel | +- 60 mm | |
| Rapid traverse | X: 15 / 15 / 15 M / Min Z: 15 / 12 / 7 M / Min |
|
| ID Tool holder dia. | Ø 40 mm (1. 6”) | |
| Tailstock | Tailstock travel | 1560 / 2060 / 2560 mm (61. 4” / 81. 1” / 100.8”) |
| Quill travel | 100 mm (3. 9”) | |
| Quill diameter | Ø 110 mm (4. 3”) / OPT Ø 160mm (6. 3”) | |
| Quill taper | MT4 (OPT MT5) | |
| Motor | Servo motor (X) | 3. 0 kw |
| Servo motor (Z) | 4. 0 kw | |
| Coolant pump | 0.37 kw | |
| Hydraulic motor | 1. 5 kw | |
| Miscellaneous | Power requirement | 30 KVA |
| X axis ball screw dia. | Ø 32 mm (1. 3”) | |
| Z axis ball screw dia. | Ø 50 mm (2”) | |
| Packing size | 5100 / 5800 / 6500 x 2090 x 2250 mm (200.8” / 228. 3” / 255. 9” x 82. 3” x 88. 6”) |
|
| Gross weight | 8200 / 9400 / 10600 kgs |
