THÔNG SỐ KỸ THUẬT
ITEM |
UNIT |

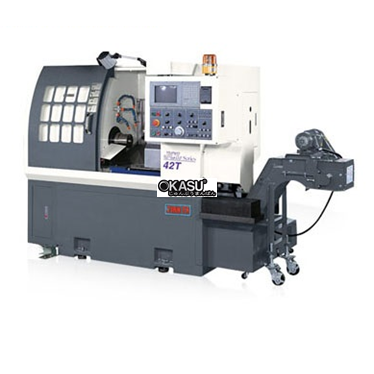

JCL-42/52T |
| Max. swing over bed | mm | Ø440 |
| Max. turning diameter | mm | Ø200 |
| Max. turning length | mm | 215/205 |
| Material coollect length | mm | 100 |
| Spindle max. bar capacity | mm | Ø42/Ø50 |
| Spindle bore diameter | mm | Ø55.5/Ø70 |
| Spindle nose | A2-5 | |
| Spindle speed range | rpm | 45~4000 |
| Spindle motor | kw | 5.5(7.5)/7.5 |
| Number of tool stations | 8 | |
| Max. stroke X-axis | mm | 120 |
| Max stroke Z-axis | mm | 225/215 |
| Rapid traverse X-axis | m/min | 12(16) |
| Rapid traverse Z-axis | m/min | 12(16) |
| Turret indexing time | sec | 0.3 |
| Machine design | deg | 20° |
| Slide way type | Square Guide way | |
| Tailstock taper | - | |
| Tailstock traverse | mm | - |
| Spindle hydraulic chuck | inch | 6" |
| Turning tool diameter | mm | □20 |
| Boring tool diameter | mm | Ø25 |
| Driven tool motor power / 30min | kw | - |
| Hydraulic motor | kw | 0.75 |
| Lubrication motor | w | 3.5 |
| Power requirement | kva | 15 |
| Coolant tank capacity | L | 100L(85%) |
| Machine dimensions (LxWxH) | mm | 2255X1800X1800 |
| Weight | kg | 2235/2265 |
