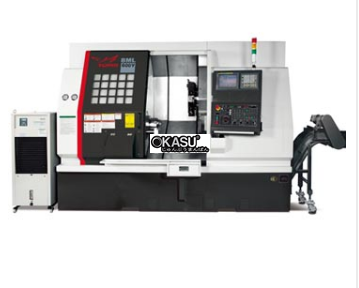

ITEM |
600Y |
|
Swing over bed |
Ø600 mm |
|
Swing over saddle |
Ø450 mm |
|
Distance between center |
STD 638 mm(A2-6) OPT 629 mm (A2-8) |
|
Max machining dia |
Ø220 mm |
|
Max machining length |
STD 529 mm(8”) OPT 515 mm (10”) |
|
Sland angle of bed |
600 |
| TRAVEL | |
| X axisl |
168 mm |
| Y axis |
60 (±30) |
| Z axis |
570 mm |
| C axis |
3600(0.0010) |
| SPINDLE | |
| Spindle speed |
STD 50-4500 rpm (A2-6) OPT 50-3500 (A2-8) |
| Spindle nose |
A2-6 OPT A2-8 |
| Spindle bore diameter |
Ø62 (A2-6)OPT Ø86 (A2-8) |
| Draw bar |
Ø52 OPT Ø75 |
| Chuck diameter |
Ø8” OPT Ø10” |
| TURRET | |
| Turret type |
Live tooling |
|
Stations |
STD12 , OPT 8 |
|
Square tool shank |
25x25 mm |
|
Boring bar shank dia |
Ø40 mm |
|
Indexing time (0-180) |
1.5 s |
|
LIVE TOOLING |
|
|
Spindle speed |
50-4000 rpm |
|
FEED RATE |
|
|
Rapid traverse |
X16 Z20Y 8 C200 m/min |
|
TAILSTOCK |
|
|
Quil dia |
Ø85 mm |
|
Quill bore taper |
MT4 |
|
Quill travel |
120 mm |
|
MOTORS |
|
|
Main spindle |
15/18.5 KW |
|
Live tool |
3.7/5.5 Kw |
|
X/Z axis servo motor |
X: 3 Kw Y: 3 Kw; Z 3 Kw |
|
Hydraulic oil pump |
1.5 Kw |
|
Chip conveyor |
0.2 Kw |
|
Coolant pump |
0.8 Kw |
|
ACCURACY |
|
|
Positioning |
±0.005 mm |
|
Repeatability |
±0.004 mm |
|
Packing dimension |
---- |
|
Net Weight |
6500 kg |
