ITEM |

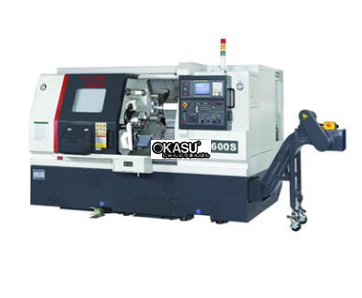

ML-600S |
||
|
Standard |
C axis |
||
|
Swingover bed |
Ø600 mm |
||
|
Swing over saddle |
Ø450 mm |
||
|
Distance between center |
Std 638 mm(A2-6) OPT 629 mm(A2-8) |
||
|
Max machining dia |
Ø420 mm |
Ø360 mm |
|
|
Max machining length |
STD: 544 (A2-6); OPT: 560 (A2-8) |
||
|
Sland angle of bed |
300 |
||
| TRAVEL | |||
| X axis |
230 mm |
246 mm |
|
| Y axis |
--- |
||
| Z axis |
600 mm |
||
| C axis |
360˚ ( 0.001˚ ) |
||
| SPINDLE | |||
| Spindle speed |
STD 50-4500 rpm (A2-6) OPT 50-3500 rpm (A2-8) |
||
| Spindle nose |
A2-6 OPT A2-8 |
||
| Spindle bore diameter |
STD: Ø62(A2-6); OPT: Ø86(A2-8) |
||
| Draw bar |
STD: 52; OPT: 75 |
||
| Chuck diameter |
Ø8” OPT Ø10” |
||
| TURRET | |||
| Turret type |
Hydraulic OPTVDI |
Live tooling |
|
|
Stations |
10 OPT 12 |
12 OPT 8 |
|
|
Square tool shank |
25x25 mm |
25x25 mm |
|
|
Boring bar shank dia |
Ø40 mm |
Ø40 mm |
|
|
Indexing time (0-180) |
2.1/0.87 s |
1.5 s |
|
|
LIVE TOOLING |
|||
|
Spindle speed |
--- |
50-4000 rpm |
|
|
FEED RATE |
|||
|
Rapid traverse |
X30 Z30 m/min |
||
|
TAILSTOCK |
|||
|
Quil dia |
Ø85 mm |
||
|
Quill bore taper |
MT5 |
||
|
Quill travel |
80 mm |
||
|
MOTORS |
|||
|
Mainspindle |
11/15KW |
||
|
Livetool |
--- |
3.7/5.5 Kw |
|
|
X/Z axis servo motor |
X: 3.0 Kw Z 3.0Kw |
||
|
Hydraulic oil pump |
1.5 Kw |
||
|
Chip conveyor |
0.2 Kw |
||
|
Coolant pump |
0.8 Kw |
||
|
ACCURACY |
|||
|
Positioning |
±0.003 mm |
||
|
Repeatability |
±0.002 mm |
||
|
Packing dimension |
3830x2120x2120 mm |
||
|
Net Weight |
5430 kg |
||
