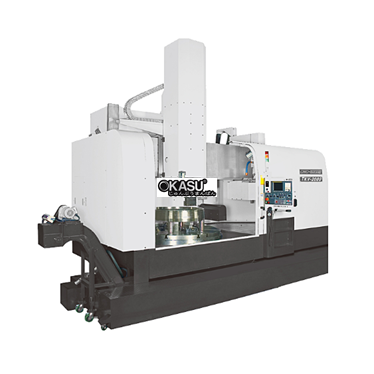

Máy tiện đứng CNC Đài Loan TKV-2000M

0
Mã sản phẩm: TKV-2000M

  • Hà Nội - 0906 066 638

    0906 066 6380906 066 638Khôi Nguyên

    0902 226 3580902 226 358Thùy Chi

  • TP.HCM - 0967 458 568

    09674585680967458568Quang Được

    0939 219 3680939 219 368Nguyên Khôi


Model TKV-2000 TKV-2000M TKV-2500 TKV-2500M
Capacity Max. swing diameter 2000 mm (78. 7″) 2500 mm (98. 4″)
Max. turning diameter 2000 mm (78. 7″) 2500 mm (98. 4″)
Distance from ram to table 650-1450 mm (25. 5″-57″) 825-1825 mm
(32. 5″-71. 9″)		 860-1860 mm
(33. 9″-73. 2″)
Max. turning height 1250 mm (49. 2″) 1600 mm (62. 9″)
Max. workpiece weight 8000 kgs 12000 kgs
Spindle Table diameter
(Manual chuck)		 1600 mm (62. 9″) 2000 mm (78. 7″)
Range of table speed 3 – 250 rpm 5 – 200 rpm
Change gear speed 2 Steps 2 Steps
Spindle nose – – – –
Driving tool spindle speed – 50 – 2250 rpm – 50 – 2250 rpm
ATC Number of tool station 12 16 12 16
Tool size 25 mm (0.9″), 32 mm (1. 2″), 40 mm (1. 5″)
Cross-section of ram 220 x 220 mm 250 x 250 mm 250 x 250 mm (9. 8″ x 9. 8 “)
Feed Rapid rate (X Axis) 10 M/min 10 M/min
Rapid rate (Z Axis) 10 M/min 10 M/min
Horizontal travel (X Axis) -200 + 1150 mm -300 + 1450 mm
Vertical travel (Z Axis) 900 mm (35. 4″) 1200 mm (47. 2″)
Cutting feed fate 0.001 – 500 mm/rev 0.001 – 500 mm/rev
Feed override 0 – 150 % 0 – 150 %
Cross – rail travel 800 (200 x 4 steps) 1000 (250 x 4 steps)
CNC Controller System Fanuc 0iTF Fanuc 0iTF
Motor Spindle motor
(Cont. / 30min)		 37 / 45 kw 60 / 75 kw
Feed motor (X / Z aixs) 7 / 7 kw 5. 5 / 5. 5kw
Driving tool motor – AC 11 / 15 kw – AC 11 / 15 kw
Power requirement 75 KVA 90 KVA 90 KVA 105 KVA
Machine Size Floor Space (L x W) 7100 x 5200 mm
(258. 5″x159. 4″)		 7400 x 5200 mm 7600 x 5500 mm
Max. height (H) 5250 mm
(204. 7″)		 5650 mm
(220.5″)		 6650 mm
(248. 0″)		 7000 mm
(271. 7″)
Net. weight 27500 kgs 28300 kgs 47000 kgs 49000 kgs


Model TKV-2000 TKV-2000M TKV-2500 TKV-2500M
Capacity Max. swing diameter 2000 mm (78. 7″) 2500 mm (98. 4″)
Max. turning diameter 2000 mm (78. 7″) 2500 mm (98. 4″)
Distance from ram to table 650-1450 mm (25. 5″-57″) 825-1825 mm
(32. 5″-71. 9″)		 860-1860 mm
(33. 9″-73. 2″)
Max. turning height 1250 mm (49. 2″) 1600 mm (62. 9″)
Max. workpiece weight 8000 kgs 12000 kgs
Spindle Table diameter
(Manual chuck)		 1600 mm (62. 9″) 2000 mm (78. 7″)
Range of table speed 3 – 250 rpm 5 – 200 rpm
Change gear speed 2 Steps 2 Steps
Spindle nose – – – –
Driving tool spindle speed – 50 – 2250 rpm – 50 – 2250 rpm
ATC Number of tool station 12 16 12 16
Tool size 25 mm (0.9″), 32 mm (1. 2″), 40 mm (1. 5″)
Cross-section of ram 220 x 220 mm 250 x 250 mm 250 x 250 mm (9. 8″ x 9. 8 “)
Feed Rapid rate (X Axis) 10 M/min 10 M/min
Rapid rate (Z Axis) 10 M/min 10 M/min
Horizontal travel (X Axis) -200 + 1150 mm -300 + 1450 mm
Vertical travel (Z Axis) 900 mm (35. 4″) 1200 mm (47. 2″)
Cutting feed fate 0.001 – 500 mm/rev 0.001 – 500 mm/rev
Feed override 0 – 150 % 0 – 150 %
Cross – rail travel 800 (200 x 4 steps) 1000 (250 x 4 steps)
CNC Controller System Fanuc 0iTF Fanuc 0iTF
Motor Spindle motor
(Cont. / 30min)		 37 / 45 kw 60 / 75 kw
Feed motor (X / Z aixs) 7 / 7 kw 5. 5 / 5. 5kw
Driving tool motor – AC 11 / 15 kw – AC 11 / 15 kw
Power requirement 75 KVA 90 KVA 90 KVA 105 KVA
Machine Size Floor Space (L x W) 7100 x 5200 mm
(258. 5″x159. 4″)		 7400 x 5200 mm 7600 x 5500 mm
Max. height (H) 5250 mm
(204. 7″)		 5650 mm
(220.5″)		 6650 mm
(248. 0″)		 7000 mm
(271. 7″)
Net. weight 27500 kgs 28300 kgs 47000 kgs 49000 kgs
Model TKV-2000 TKV-2000M TKV-2500 TKV-2500M
Capacity Max. swing diameter 2000 mm (78. 7″) 2500 mm (98. 4″)
Max. turning diameter 2000 mm (78. 7″) 2500 mm (98. 4″)
Distance from ram to table 650-1450 mm (25. 5″-57″) 825-1825 mm
(32. 5″-71. 9″)		 860-1860 mm
(33. 9″-73. 2″)
Max. turning height 1250 mm (49. 2″) 1600 mm (62. 9″)
Max. workpiece weight 8000 kgs 12000 kgs
Spindle Table diameter
(Manual chuck)		 1600 mm (62. 9″) 2000 mm (78. 7″)
Range of table speed 3 – 250 rpm 5 – 200 rpm
Change gear speed 2 Steps 2 Steps
Spindle nose – – – –
Driving tool spindle speed – 50 – 2250 rpm – 50 – 2250 rpm
ATC Number of tool station 12 16 12 16
Tool size 25 mm (0.9″), 32 mm (1. 2″), 40 mm (1. 5″)
Cross-section of ram 220 x 220 mm 250 x 250 mm 250 x 250 mm (9. 8″ x 9. 8 “)
Feed Rapid rate (X Axis) 10 M/min 10 M/min
Rapid rate (Z Axis) 10 M/min 10 M/min
Horizontal travel (X Axis) -200 + 1150 mm -300 + 1450 mm
Vertical travel (Z Axis) 900 mm (35. 4″) 1200 mm (47. 2″)
Cutting feed fate 0.001 – 500 mm/rev 0.001 – 500 mm/rev
Feed override 0 – 150 % 0 – 150 %
Cross – rail travel 800 (200 x 4 steps) 1000 (250 x 4 steps)
CNC Controller System Fanuc 0iTF Fanuc 0iTF
Motor Spindle motor
(Cont. / 30min)		 37 / 45 kw 60 / 75 kw
Feed motor (X / Z aixs) 7 / 7 kw 5. 5 / 5. 5kw
Driving tool motor – AC 11 / 15 kw – AC 11 / 15 kw
Power requirement 75 KVA 90 KVA 90 KVA 105 KVA
Machine Size Floor Space (L x W) 7100 x 5200 mm
(258. 5″x159. 4″)		 7400 x 5200 mm 7600 x 5500 mm
Max. height (H) 5250 mm
(204. 7″)		 5650 mm
(220.5″)		 6650 mm
(248. 0″)		 7000 mm
(271. 7″)
Net. weight 27500 kgs 28300 kgs 47000 kgs 49000 kgs
