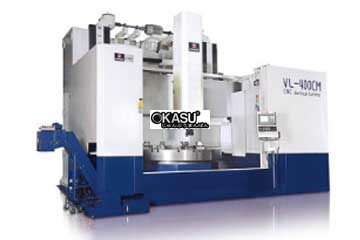

SPECIFICATION
|
ITEM |
VL500C |
VL500CM |
VL600C |
VL600CM |
||||
|
Max swing dia |
6000 mm |
7000 mm |
||||||
|
Max turning dia |
6000 mm |
7000 mm |
||||||
|
Distance from ram to table |
1200-3000 mm |
1200-3000 mm |
||||||
|
Max turning height |
2600 mm |
2600 mm |
||||||
|
Max workpiece weight |
80000 kg |
100000 kg |
||||||
|
Table diameter |
5000 mm |
6000 mm |
||||||
|
SPINDLE |
||||||||
|
Range of table speed |
1-50 rpm |
1-20 rpm |
||||||
|
Gear box |
2 step |
2 step |
||||||
|
Live tool spindle speed |
--- |
50-2250rpm |
--- |
50-2250rpm |
||||
|
ATC |
16 |
24 |
16 |
24 |
||||
|
Tool shank |
32x32mm 40x40mm |
32x32mm 40x40mm |
||||||
|
Cross section of ram |
400x400mm |
400x400mm |
||||||
|
FEED |
||||||||
|
Rapid rate X axis |
10 m/min |
10 m/min |
||||||
|
Rapid rate Z axis |
10 m/min |
10 m/min |
||||||
|
Horizontal travel X axis |
-100+3000 mm |
-100+4000 mm |
||||||
|
Vertical travel Z axis |
2200 mm |
2200 mm |
||||||
|
Cutting feed rate |
2000 mm/min |
2000 mm/min |
||||||
|
Feed override |
0-150% |
0-150% |
||||||
|
Control system |
Fanuc OiTD |
Fanuc OiTD |
||||||
|
MOTOR |
||||||||
|
Spindle motor |
60/75 Kw 65/75*2 Kw |
60/75 Kw 65/75*2 Kw |
||||||
|
Feed motor X/Z axis |
5.5/5.5 Kw |
5.5/5.5 Kw |
||||||
|
Floor space |
12500x9000 mm |
13000x11000mm |
||||||
|
Max height |
9000 mm |
10000mm |
9000 mm |
10000mm |
||||
|
N.W |
139000 kg |
140000 kg |
169000kg |
170000 kg |
||||
