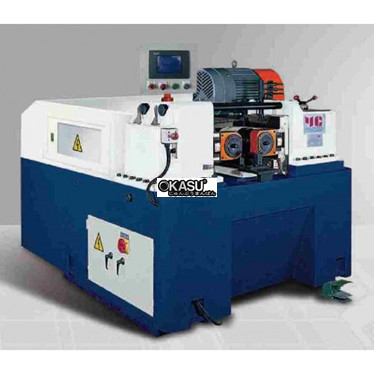

| MAIN SPECIFICATION | YC-860P | |
|---|---|---|
| Rolling Size | Min. O.D. | 25 mm |
| Max. O.D. | 120 mm | |
| Max. Length | In feed and through feed | |
| Max. Pitch | 2~12 mm | |
| Roll Dies | Rolling Speed | 20~60rpm |
| Max. Outside Dia. | 240 mm | |
| Inside Dia. | 80 mm | |
| Max. Width | 220 mm | |
| Max. Center Distance of Die-Spindle | 340mm | |
| Min. Center Distance of Die-Spindle | 230 mm | |
| Max. Rolling Force | 70 TON | |
| Motor | Rolling Spindle | 30 HP |
| Hydraulic Pump | 10 HP | |
| Coolant Pump | 1/2HP | |
| Gear Box Pump | 1/4 HP | |
| N.W. | 5600 kg | |
| G.W. | 6200 kg | |
| Floor Space | 2350 x 2100 mm | |
| Packing Dimension (L X W X H) | 2600 x 2400 x 2550 mm | |
