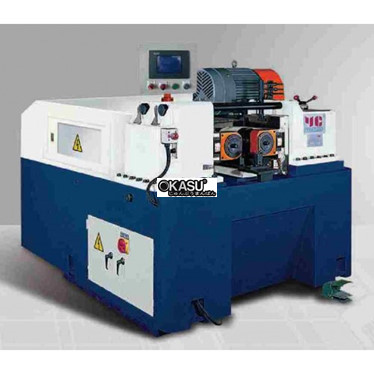

| MAIN SPECIFICATION | YC-970P | |
|---|---|---|
| Rolling Size | Min. O.D. | 25 mm |
| Max. O.D. | 150 mm | |
| Max. Length | In feed and through feed | |
| Max. Pitch | 3~16mm | |
| Roll Dies | Rolling Speed | 20~60 rpm |
| Max. Outside Dia. | 300 mm | |
| Inside Dia. | 100 mm | |
| Max. Width | 260 mm | |
| Max. Center Distance of Die-Spindle | 400 mm | |
| Min. Center Distance of Die-Spindle | 230 mm | |
| Max. Rolling Force | 100 TON | |
| Motor | Rolling Spindle | 40 HP (50 HPoptional) |
| Hydraulic Pump | 15 HP (20 HP optional) | |
| Coolant Pump | 1/2 HP | |
| Gear Box Pump | 1/4 HP | |
| N.W. | 12000 kg | |
| G.W. | 12200 kg | |
| Floor Space | 2600 x 2100 mm | |
| Packing Dimension (L X W X H) | 2800 x 2250 x 2550mm |
|
