Máy làm đá viên OKASU KMD-201AA

52550000
Mã sản phẩm: KMD-201AA

  • Hà Nội - 0906 066 638

    0906 066 6380906 066 638Khôi Nguyên

    0902 226 3580902 226 358Thùy Chi

  • TP.HCM - 0967 458 568

    09674585680967458568Quang Được

    0939 219 3680939 219 368Nguyên Khôi



CHI TIẾT SẢN PHẨM



Máy làm đá OKASU KMD-201AA

Công suất tối đa: 205 kg/ngày

The OKASU KMD-201AA ice machine produces up to 205kg of clear hard crescent ice a day and is suited to Lancer dispensers and a range of ice storage bins.

may lam da vien okasu kmd-201aa hinh 0



THÔNG SỐ KỸ THUẬT



KMD-201AA

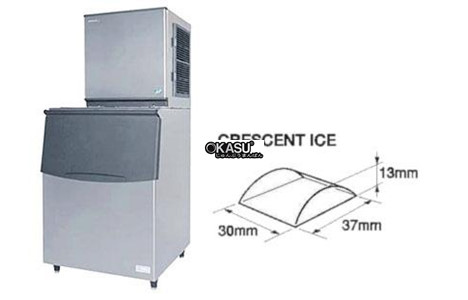

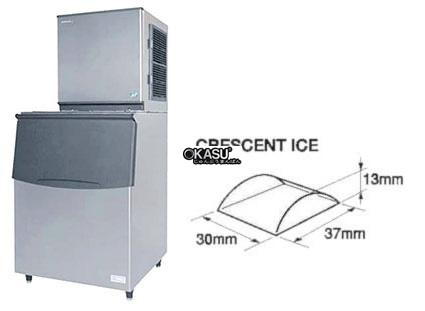

ICE DIMENSIONS (WxDxH)

37 x 30 x 13 mm

EXTERNAL DIMENSIONS (WxDxH)

560 x 625 x 610 mm

PACKED DIMENSIONS (WxDxH)

668 x 727 x 793 mm

WEIGHT (NETT/GROSS)

57 KG / 73 KG

AMPERAGE / STARTING AMPERAGE

3.0A / 25A

ELECTRICAL CONSUMPTION

700 W

REFRIGERANT CHARGE

R134a

HEAT REJECTION (AT32°C/WT21°C)

1410 W (1220 kcal/h)

ICE PRODUCTIONPER 24H (15MM)

(AT10°C/WT10°C)

205 KG

(AT21°C/WT15°C)

182 KG

(AT32°C/WT21°C)

157 KG

WATER CONSUMPTION PER 24H(AT21°C/WT15°C)

0.48 m3

2.6L / 1KG ICE

ICE PRODUCTION(AT21°C/WT15°C)

FREEZE CYCLE TIME

27.7 MIN

PER CYCLE

3.8 KG / 416 PCS

STORAGE CAPACITY

55 KG

•WARRANTY:Two years parts & labour for entire unit, 3rdyear oncompressor only. Excluding door & exterior damages

OPERATING CONDITIONS:• Voltage Range: 198V-254V • Ambient Temperature: 1°-40°C• Water Supply: 5°-35°C / 0.07-0.8 Mpa / 7.25-116 PSI • AC Supply Voltage: 1/220-240V / 50 Hz
