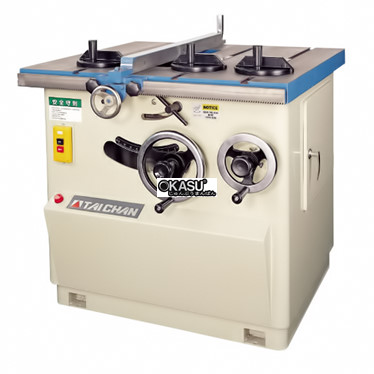

| Model | TT-14 |
|---|---|
| Table size | 860 x 780 mm |
| Diameter of arbor | Ø25.4 mm |
| Dia. of saw blade(optional) | 355 mm |
| Max. depth of cut at 90。 | 100 mm |
| Max. depth of cut at 45。 | 80 mm |
| Saw Blade tilt | 45。 |
| Saw Blade speed | 4000 R.P.M. |
| Motor | 3HP(5HP, 7.5HP Optional) |
| Machine size(L x W x H) | 910 x 860 x 810 mm |
| Packing size(L x W x H) | 1020 x 1000 x 1040 mm |
| N.W/G.W | 400 / 450 Kg |
