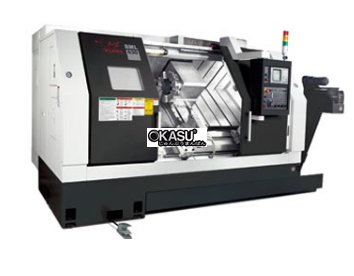

ITEM |
630 |
||
|
Standard |
C axis |
||
|
Swing over bed |
Ø630 mm |
||
|
Swingoversaddle |
Ø450 mm |
||
|
Distance between center |
STD 1711 mm(A2-8) OPT 1674 mm (A2-11) |
||
|
Max machining dia |
Ø510 mm |
Ø410 mm |
|
|
Max machining length |
STD 1526 mm(12”) OPT 1475 mm (15”) |
||
|
Sland angle of bed |
450 |
||
| TRAVEL | |||
| X axis |
290(255+35) mm |
290(205+85) mm |
|
| Y axis |
--- |
||
| Z axis |
12” 1569 mm 15” 1531 mm |
||
| C axis |
3600(0.0010) |
||
| SPINDLE | |||
| Spindle speed |
STD 50-2500 rpm (A2-8) 2 step gear box OPT 50-2000 (A2-11) 2 step gear box |
||
| Spindle nose |
A2-8 OPT A2-11 |
||
| Spindle bore diameter |
Ø105 A2-8 OPT Ø134 A2-11 |
||
| Draw bar |
Ø90 A2-8 OPT Ø116 A2-11 |
||
| Chuck diameter |
Ø12” OPT Ø15” |
||
| TURRET | |||
| Turret type |
Hydraulic OPT VDI |
Live tooling |
|
|
Stations |
STD10 , OPT 12 |
12 |
|
|
Square tool shank |
32x32 mm |
||
|
Boring bar shank dia |
Ø50 mm |
Ø50 mm |
|
|
Indexing time (0-180) |
2 s |
1.5 s |
|
|
LIVE TOOLING |
|||
|
Spindle speed |
--- |
50-4000 rpm |
|
|
FEED RATE |
|||
|
Rapid traverse |
X16 Z20 m/min |
||
|
TAILSTOCK |
|||
|
Quil dia |
Ø125 mm |
||
|
Quill bore taper |
MT5 |
||
|
Quill travel |
120 mm |
||
|
MOTORS |
|||
|
Main spindle |
22/36 KW OPT30/37 Kw |
18.5/22 Kw |
|
|
Live tool |
--- |
5.5 /7.5 Kw |
|
|
X/Z axis servo motor |
X: 4Kw Z 4Kw |
||
|
Hydraulicoilpump |
2.25 Kw |
||
|
Chip conveyor |
0.2 Kw |
||
|
Coolant pump |
0.96 Kw |
||
|
ACCURACY |
|||
|
Positioning |
X axis ±0.005 mm Z 0.006 mm |
||
|
Repeatability |
X axis ±0.004 mm Z 0.005 mm |
||
|
Packing dimension |
5690x2210x2500 mm |
||
|
Net Weight |
9770 kg |
||
