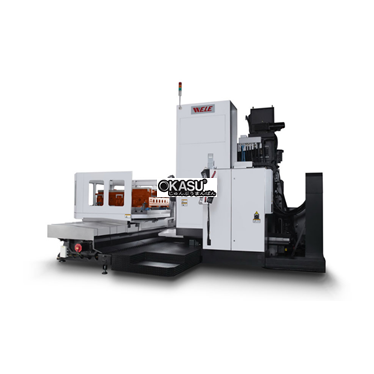

THÔNG SỐ KỸ THUẬT TRUNG TÂM GIA CÔNG NGANG CNC WELE HB SERIES
Specification/Machine model
|
Unit
|
HB1620-110
|
HB1620-130
|
| X axis travel |
mm (in) |
3000 (118.1) |
| Yaxis travel |
mm (in) |
2100(82.6) |
| Zaxis travel |
mm (in) |
1500 (59.1) |
| Waxis travel |
mm (in) |
500(19.6) |
700(27.5) |
| From spindle nose to the centerline of table |
mm (in) |
280~2280(89.7) |
80(3.1)~2280(89.7) |
| Table dimension (X direction) |
mm (in) |
1600 (63) |
| Table dimension (Y direction) |
mm (in) |
2000 (78.7) |
| The samllest split angle of table |
degree |
0.001 |
| Table loading |
kg (lb) |
12000 (26455) |
| Spindle motor power |
kW (HP) |
22/26 (30/35) |
| Spindle speed |
rpm |
3500 |
2500 |
| Spindle taper |
|
BT#50 (ISO 50) |
| Rapid feedrate- X axis |
mm(in)/min |
15000 (590.6) |
| Rapid feedrate- Y axis |
mm(in)/min |
12000 (472.4) |
| Rapid feedrate- Z axis |
mm(in)/min |
15000 (590.6) |
| Rapid feedrate- W axis |
mm(in)/min |
5000 (196.9) |
| Rapid feedrate- B axis |
round/min |
0.5 |
| Cutting federate |
mm(in)/min |
5000(196.7) |
| Capacity of tool magazine |
pcs |
40 |
| Max tool diameter / Adjacent pocket empty |
mm (in) |
125/250 (4.9/9.8) |
| Max. tool length |
mm (in) |
400(15.7) |
| Max. tool weight |
kg (lb) |
25(55) |
| Positioning accuracy (JIS 6338) |
mm (in) |
±0.010 (±0.0009/full travel) |
| Positioning accuarcy of X, Y axis (VDI/DGQ 3441) |
mm (in) |
P≦0.020(0.000787)/full travel |
| Positioning accuracy - Z axis (VDI/DGQ 3441) |
mm (in) |
P≦0.025(0.000984)/full travel |
| Repeatibility accuracy (JIS 6338) |
mm (in) |
±0.05(0.001969) |
| Repeatibility accuracy (VDI/DGQ 3441) |
mm (in) |
Ps≦0.015 (Ps≦0.0006) |
| Repeatibility accuracy-Z axis (VDI/DGQ 3441) |
mm (in) |
Ps≦0.018(0.000709) |
| Length of the machine |
mm (in) |
7795(306.8) |
| Width of the machine |
mm (in) |
6772(266.6) |
| Height of the machine |
mm (in) |
4485(176.5) |
4522(178) |
| Weight of the machine |
kg (lb) |
34500(76059) |
36000(79366)
|
|
