| Model |
Unit |

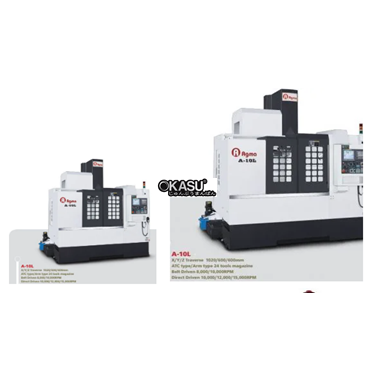

A-10L |
||
| SPINDLE | SPINDLE TAPER |
NO. 40 |
||
| TRANSMISSION |
BELT DRIVEN |
|||
| SPINDLE SPEED |
r. p. m. |
8000 |
||
| SPINDLE DIAMETER |
mm |
150 |
||
| TABLE | TABLE SIZE |
mm |
1200 x 600 |
|
| T-SLOT |
mm |
18 x 5 x 100 |
||
| WORK AREA |
1020 x 600 |
|||
| MAX. TALBE LOAD |
kgs |
700 |
||
| TRAVEL & FEEDRATE | X AXIS |
mm |
1020 |
|
| Y AXIS |
mm |
600 |
||
| Z AXIS |
mm |
600 |
||
| DISTANCE FROM SPINDLE NOSE TO TABLE |
mm |
150 ~ 750 |
||
| DISTANCE FROM SPINDLE CENTER TO SURFACE OF COLUMN WAY |
mm |
655 |
||
| RAPID TRAVERSE (X/Y/Z) |
mm/min |
X, Y, Z: 32 / 32 / 28 |
||
| CUTTING FEEDRATE |
mm/min |
X, Y, Z: 1 ~ 12,000 |
||
| ATC | TOOL SHANK |
BT – 40 |
||
| PULL STUD |
MAS P40T-1 (45°) |
|||
| MAGAZINE CAPACITY |
pcs |
24 |
||
| MAX. TOOL DIAMETER (FULL STORAGE) |
mm |
ø80 |
||
| MAX. TOOL LENGTH |
mm |
300 |
||
| MAX. TOOL WEIGHT |
kgs |
7 |
||
| ATC TYPE |
ARM TYPE |
|||
| MOTOR | FOR SPINDLE(CONT. /30 min. ) |
Kw |
7. 5/11 (10/15) |
|
| X/Y/Z AXIS |
Kw |
3/3/7 (4/4/10) |
||
| FOR CTTING |
HP |
0.86 |
||
| MISC. | MACHINE HEIGHT |
mm |
3085 |
|
| MACHINE SPACE |
mm |
2800 x 2736 |
||
| MACHINE WEIGHT |
kgs |
6500 (14300 lbs) |
||
| CONTROLLER(FANUC/MITSUBISHI) |
0iMD 8. 4″ |
