SPECIFICATION

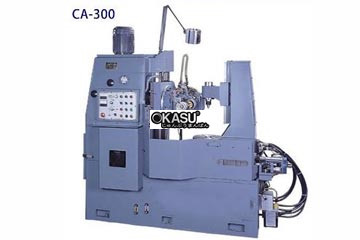

- Secondary feed, a hydraulic control semi-automatic type of the hobbing machine
- Maximum cutting diameter: 300mm
- Maximum cutting module: M5
- Center distance of hob to workpiece: 20-220mm
- Vertical displacement of hob saddle: 240mm
- Work table diameter: 300mm
- Center bore diameter of work table: 65mm
- Maximum hob diameter & length: 110x110mm
- Maximum shift distance of hob: 60mm
- Hob Rpm, VFD control: 80-250rpm
- Main Moter: 3HPx4P
- Motor for hob saddle rapid feed: 1HP
- Floor space & hight(W*D*H): 2,000x1,320x1,950mm
- Approximate weight: 3,400kgs
