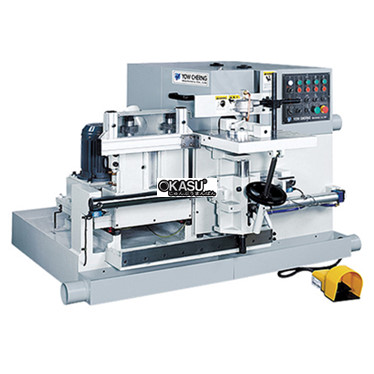

| Model | YC-TF1 |
|---|---|
| Cutting unit | |
| Spindle motor (1) | 3 HP |
| Blade size | 450 mm |
| Spindle speed | 3000 RPM |
| Boring unit | |
| Spindle motor (1) | 3 HP |
| Boring | 17 17/22 22 mm (5-spindles boring head) |
| Spindle speed | 2800 RPM |
| Depth adjustment | 70 mm |
| Moulding | |
| Spindle motor (2) | 5 HP |
| Spindle diameter (2) | 30 mm |
| Spindle speed | 8000 rpm/min |
| Total horsepower | 12 kw (16 HP) |
| Working air pressure | 6 BAR |
| Dust hood outlet diameter | ø4″ x 5 |
| Machine dimensions (LxWxH) | 1600x1600x1400 mm |
| Packing size (LxWxH) | 1900x1690x1420 mm |
| Net / Gross weight | 1800/1900 kg |
