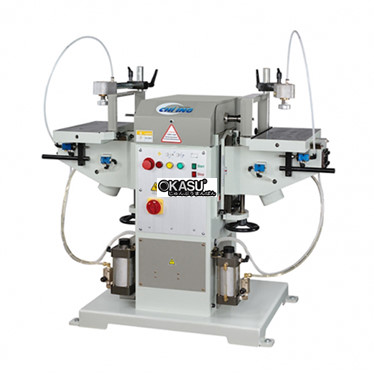

| Model No. | CI－02 |
| Mortise Oscillation Length | Max. 120mm |
| Mortise Slot Thikness | Max. 30mm |
| Mortise Slot Depth | Max. 80mm |
| Hourly Production | 500～800 Slots |
| Table Area | 270mm×482mm |
| Table Tilt（Horizontal） | 0˚～－20˚ |
| Table Vertical Movement | 0～100mm |
| Spindle Rotation | 9000R.P.M. |
| Oscillations per minute | 67～400 strokes |
| Spindle Motor | 3HP（2.2KW） |
| Oscillation Motor | 0.5HP（0.37KW） |
| Machine Dimensions（L×W×H） | 850×1300×1270mm |
| Net Weight | 360KGS |
